Fluke | Digital Multimeter

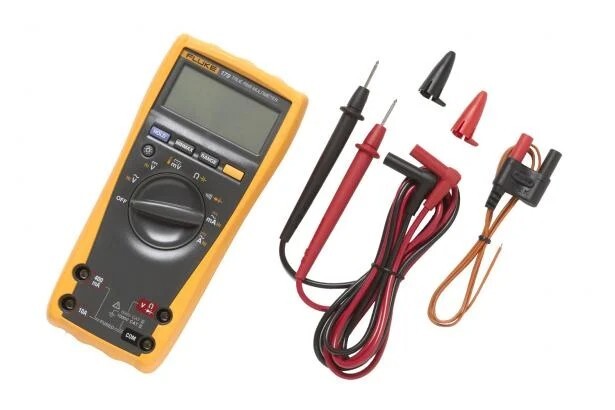

Fluke 179 True-RMS Digital Multimeter

The Fluke 179 True-RMS Digital Multimeter is a versatile and rugged tool designed for professionals in electrical and electronic systems troubleshooting. It offers accurate measurements across a wide range of functions, including voltage, current, resistance, capacitance, frequency, and temperature, making it suitable for various applications..

  • Detail
  • Special Features
  • Specification

The Fluke 179 is engineered to meet the demanding needs of professionals who require reliable and precise measurements. Its True-RMS capability ensures accurate readings even for distorted waveforms, making it ideal for troubleshooting complex electrical systems. The built-in thermometer adds versatility, allowing users to measure temperature without the need for additional tools. Its robust design and safety features make it suitable for use in various environments, from industrial settings to fieldwork.

  • True-RMS Measurement: Ensures accurate readings for non-linear signals.

  • Wide Measurement Range: Measures up to 1000 V AC/DC and 10 A AC/DC.

  • Built-in Thermometer: Allows temperature measurements from -40°C to 400°C (-40°F to 752°F).

  • Large Backlit Display: Provides clear visibility in low-light conditions.

  • Data Logging: Features Min/Max/Avg recording to capture signal fluctuations.

  • Safety Ratings: Complies with CAT III 1000 V and CAT IV 600 V safety standards.

Measurement Range Accuracy
DC Voltage 0.001 mV to 1000 V ±(0.09% + 2)
AC Voltage 0.001 mV to 1000 V ±(1.0% + 3)
DC Current 0.01 mA to 10 A ±(1.0% + 3)
AC Current 0.01 mA to 10 A ±(1.5% + 3)
Resistance 0.1 Ω to 50 MΩ ±(0.9% + 1)
Capacitance 1 nF to 10,000 µF ±(1.2% + 2)
Frequency 0.01 Hz to 100 kHz ±(0.1% + 1)
Temperature -40°C to 400°C ±(1.0% + 10)



Specification Value
Operating Temperature -10°C to +50°C
Storage Temperature -30°C to +60°C
Humidity 0% – 90% (0°C – 35°C)
  0% – 70% (35°C – 50°C)



Specification Value
Size 43 x 90 x 185 mm
Weight 420 g
Warranty Lifetime
Battery Life ~200 hours (without backlight)



Specification Value
Overvoltage Category CAT III 1000 V, CAT IV 600 V
